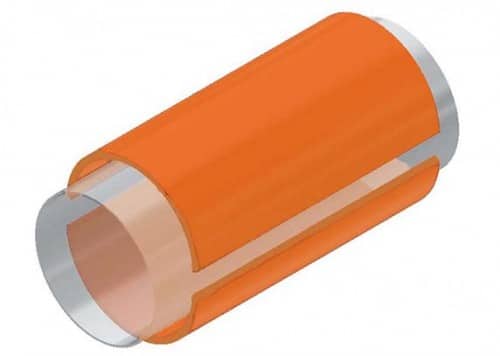

Inline Services can supply steel reinforcing sleeves caused by anomalies in or on your piping system. Our steel reinforcing sleeves come with a complete design package that include drawings, calculations, and material trace ability. We offer size range from 2”-42” for full pressure rating.



DESIGN DATA:

  • Design Codes: ASME B31.8/4, B31.1, B31.3
  • Design Pressure: 150# Class – 900# Class
  • Design Factor: 0.4, 0.5, 0.6, 0.72

MATERIALS:

  • Plate: A860 All Grades – P355 NL1, P460 NL1 as per EN 10.028-3
  • Flanges: ASTM A105 Ø ≤ 24” ASME B16.5 Ø > 24” MSS-SP-44/ASME B16.47.
  • Bolts & Nuts: ASTM A193 B7/194 2H
  • Pipe: API 5L Gr.B, ASTM A106 Gr.B, E355 as per EN 10.028-3

NDT TEST (as per ASME sec.IX):

  • 100% RX on butt welds
  • 100% US on the other

WELDINGS (as per ASME sec.IX):

CERTIFICATION: 3.1

MATERIALS:

  • Carbon Steel
  • Stainless Steel

TYPE:

  • Extruded Fittings
  • Welded Fittings
  • Mechanical Fittings

SIZE:

From Ø2” to Ø56”
