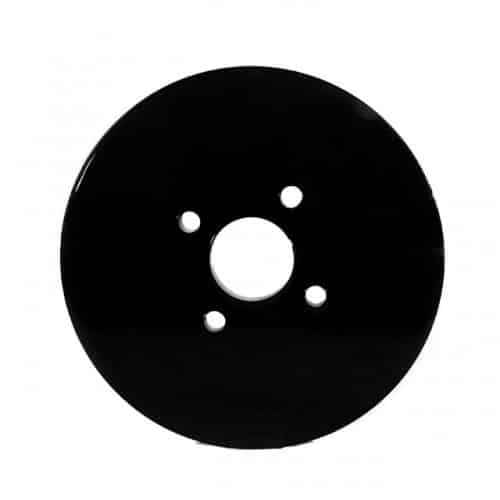

Inline Service’s Guide Disc is used to help push the pig through the pipeline. It is designed to be attached on the end of a mandrel bodied pig.
The Guide Disc can be configured for any mandrel pig and is available for all pipe diameters. This disc is made from Inline’s MAXITHANE™, a high performance urethane material, which makes this product very durable.
GUIDE DISC
| SIZE | WEIGHT | O.D. | PART NO. |
|---|---|---|---|
| 6" | 1.00 | 6.00 | 91313606 |
| 8" | 1.50 | 8.00 | 91313608 |
| 10" | 2.50 | 10.00 | 91313610 |
| 12" | 5.00 | 12.00 | 91313612 |
| 14" | 6.00 | 13.25 | 91313614 |
| 16" | 8.00 | 15.25 | 91313616 |
| 18" | 10.00 | 17.25 | 91313618 |
| 20" | 11.50 | 19.25 | 91313620 |
| 22" | 14.50 | 21.25 | 91313622 |
| 24" | 16.50 | 23.25 | 91313624 |
| 26" | 20.50 | 25.25 | 91313626 |
| 28" | 28.50 | 27.25 | 91313628 |
| 30" | 34.50 | 29.25 | 91313630 |
| 32" | 40.50 | 31.25 | 91313632 |
| 34" | 47.00 | 33.25 | 91313634 |
| 36" | 48.00 | 35.25 | 91313636 |
| 38" | 54.00 | 37.25 | 91313638 |
| 40" | 64.50 | 39.25 | 91313640 |
| 42" | 82.00 | 41.25 | 91313642 |
| 48" | 99.00 | 47.25 | 91313648 |
