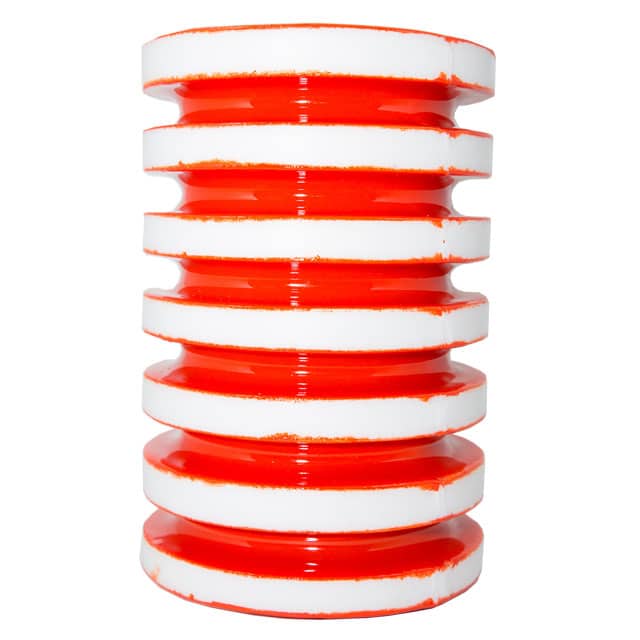

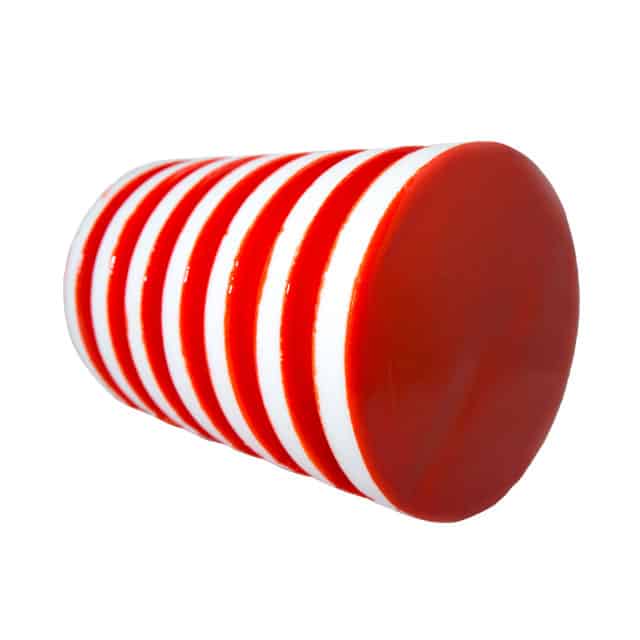

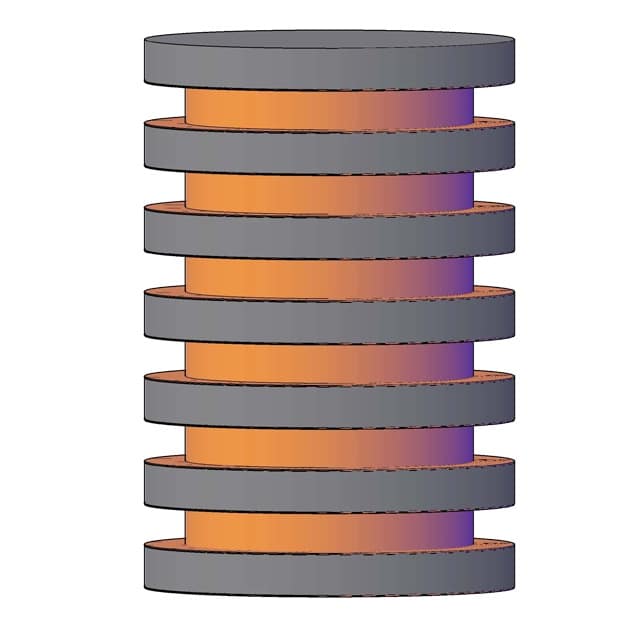

The Foam Disc Pig is one of the most efficient liquid removal pigs available. The polyurethane foam body is molded with circular grooves across its body to provide a series of wiping edges. These grooves are coated with a polyurethane elastomer, which improve the wiping action and increase its wear resistance. Because of its unique multiple disc design, by-pass is minimal.
FOAM DISC

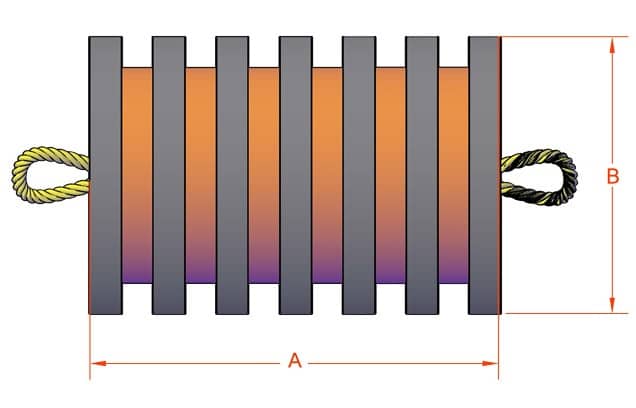

| SIZE | WEIGHT (lbs) | A (LENGTH) (in.) | B (O.D.) (in.) | PART NO. |
|---|---|---|---|---|
| 2" | 0.20 | 3.5 | 2.25 | 85400200 |
| 3" | 0.536 | 5.0 | 3.375 | 85400300 |
| 4" | 1.250 | 6.85 | 4.5 | 85400400 |
| 6" | 3.288 | 9.6 | 6.5 | 85400600 |
| 8" | 6.070 | 11.25 | 8.5 | 85400800 |
| 10" | 12.955 | 14.75 | 10.5 | 85401000 |
| 12" | 18.600 | 20.50 | 12.5 | 85401200 |
| 14" | 20.515 | 20.00 | 13.75 | 85401400 |
| 16" | 35.260 | 22.75 | 15.75 | 85401600 |
| 18" | 50.00 | 28.50 | 17.75 | 85401800 |
| 20" | 75.00 | 30.00 | 20.00 | 85402000 |
| 24" | 100.00 | 34.50 | 24.00 | 85402400 |
| 30" | 200.00 | 42.00 | 29.75 | 85403000 |
- Sizes 2″ – 60″
- Multiple disc design
- Single piece construction

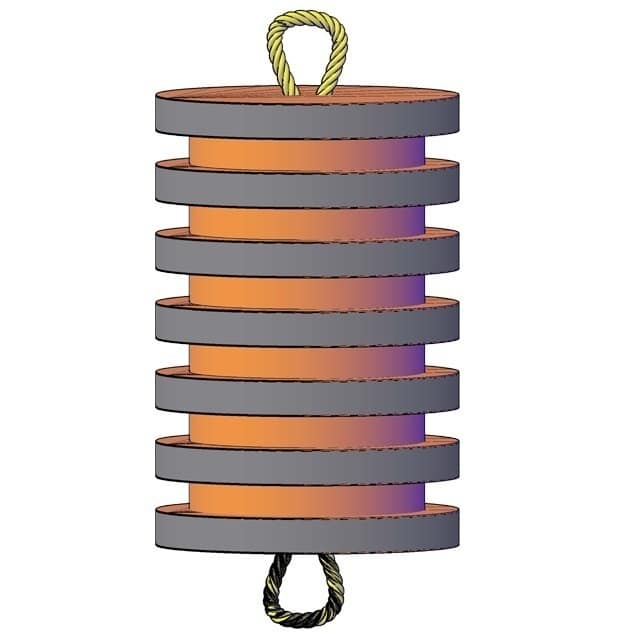

- Handling Rope
- 1.5x and 2x extended lengths
- 5LB and 8LB density
- Transmitter housing
