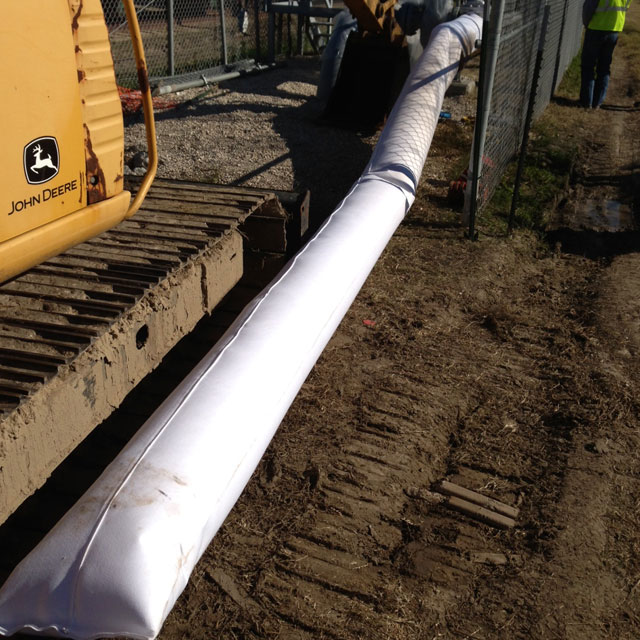

Inline Services pigging Dust Bags eliminate environmental pollution arising from pigging a pipeline with air or nitrogen by trapping and containing dust particles as small as five microns, along with mill scale and construction debris. The heavy-duty cloth like bag is secured around the discharge pipe with a draw-string type closure.
Operation is continuous and no change in standard pigging practice is required. Reinforced pulling and lifting handles facilitate positioning and subsequent emptying of the bag into the bed of dump trucks or other type containers for disposal.
Standard Dust Bags are available in two diameters and three lengths. Special sizes can be fabricated upon request. Contact us for details.
DUST BAGS
| PACKAGE | DIMENSIONS | |||
|---|---|---|---|---|
| OPERATIONAL SIZE | PART NO. | LENGTH (IN.) | DIAMETER (IN.) | WEIGHT (LBS.) |
| 12" X 5' | 10112005 | 20.00 | 6.00 | 1.50 |
| 12" X 10' | 10112010 | 20.00 | 7.00 | 3.00 |
| 12" X 12' | 10112012 | 20.00 | 9.50 | 4.00 |
| 12" X 25' | 10112025 | 20.00 | 10.00 | 9.00 |
| 12" X 36' | 10112036 | 20.00 | 12.50 | 12.00 |
| 12" X 37.5' | 10112037 | 20.00 | 13.00 | 13.00 |
| 12" X 50' | 10112050 | 20.00 | 14.00 | 18.00 |
| 12" X 75' | 10112075 | 20.00 | 17.00 | 28.00 |
| 24" X 10' | 10124010 | 40.00 | 7.00 | 6.00 |
| 24" X 15' | 10124015 | 40.00 | 8.50 | 9.00 |
| 24" X 20' | 10124020 | 40.00 | 9.00 | 11.00 |
| 24" X 25' | 10124025 | 40.00 | 10.50 | 14.00 |
| 24" X 37.5' | 10124037 | 40.00 | 12.00 | 22.00 |
| 24" X 50' | 10124050 | 40.00 | 13.00 | 31.00 |
| 24" X 75' | 10124075 | 40.00 | 16.00 | 51.00 |
| 24" X 100' | 10124100 | 40.00 | 18.00 | 73.00 |
| 24" X 150' | 10124150 | 40.00 | 115.00 | |
| 48" X 25' | 10148025 | 78.00 | 11.00 | 30.00 |
| 48" X 37.5' | 10148037 | 78.00 | 14.00 | 50.00 |
| 48" X 50' | 10148050 | 81.00 | 16.00 | 72.00 |
| 48" X 75' | 10148075 | 78.00 | 18.00 | 104.00 |
| 48" X 100' | 10148100 | 78.00 | 22.00 | 138.00 |
| 48" X 150' | 10148150 | 80.00 | 20.00 | 210.00 |
