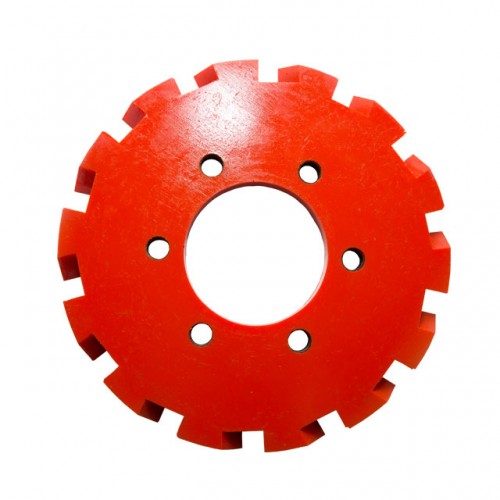

Inline Service’s Cutter Disc is designed for enhanced cleaning of pipelines where wax, scale or sludge is present. The angled shaped surface bearing edges of the disc act as cutter blades to scrape off deposits throughout the pipeline. The spaces in-between the cutter edges allow bypass of product to help suspend removed debris.

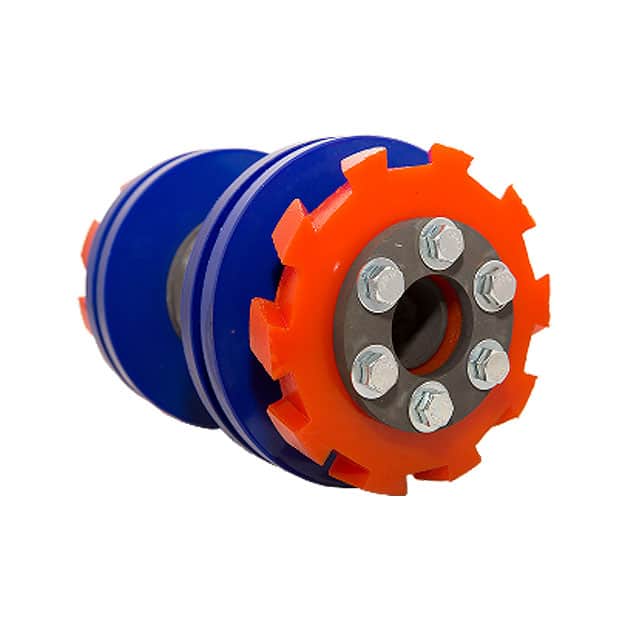

The Cutter Disc can be used on any mandrel pig and is available for all pipe diameters. This disc is made from Inline’s MAXITHANE™, a high performance urethane material, which makes this product very durable.
CUTTER DISC
| SIZE | WEIGHT | O.D. | PART NO. |
|---|---|---|---|
| 6" | 1.00 | 6.00 | 91315506 |
| 8" | 1.50 | 8.00 | 91315508 |
| 10" | 2.50 | 10.00 | 91315510 |
| 12" | 5.00 | 12.00 | 91315512 |
| 14" | 6.00 | 13.25 | 91315514 |
| 16" | 8.00 | 15.25 | 91315516 |
| 18" | 10.00 | 17.25 | 91315518 |
| 20" | 11.50 | 19.25 | 91315520 |
| 22" | 14.50 | 21.25 | 91315522 |
| 24" | 16.50 | 23.25 | 91315524 |
| 26" | 20.50 | 25.25 | 91315526 |
| 28" | 28.50 | 27.25 | 91315528 |
| 30" | 34.50 | 29.25 | 91315530 |
| 32" | 40.50 | 31.25 | 91315532 |
| 34" | 47.00 | 33.25 | 91315534 |
| 36" | 48.00 | 35.25 | 91315536 |
| 38" | 54.00 | 37.25 | 91315538 |
| 40" | 65.00 | 39.25 | 91315540 |
| 42" | 82.00 | 41.25 | 91315542 |
| 48" | 99.00 | 47.25 | 91315548 |
