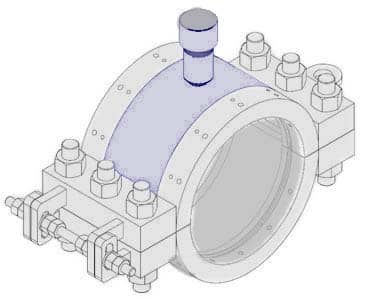

Inline Services supplies Bolt-On Clamps for temporary or permanent repairs to your piping system. Our Bolt-On Clamps come with a compete design package that include drawings, calculations, and material trace ability. The Bolt-On Clamp is designed to ASME Section VIII and come in different sizes from 2”-42” for low pressure and high pressure applications and we offer different seal types (Buna, Viton or to your piping spec). The Bolt-On Clamp can also be equipped with Hot Tap or Line Stop flanges per piping application.
DESIGN DATA:
- Design Codes: ASME B31.8/4, B31.1, B31.3
- Design Pressure: 150# Class – 900# Class
- Design Factor: 0.4, 0.5, 0.6, 0.72
MATERIALS:
- Plate: A860 All Grades – P355 NL1, P460 NL1 as per EN 10.028-3
- Flanges: ASTM A105 Ø ≤ 24” ASME B16.5 Ø > 24” MSS-SP-44/ASME B16.47.
- Bolts & Nuts: ASTM A193 B7/194 2H
- Pipe: API 5L Gr.B, ASTM A106 Gr.B, E355 as per EN 10.028-3
NDT TEST (as per ASME sec.IX):
- 100% RX on butt welds
- 100% US on the other
WELDINGS (as per ASME sec.IX):
CERTIFICATION: 3.1
MATERIALS:
- Carbon Steel
- Stainless Steel
TYPE:
- Extruded Fittings
- Welded Fittings
- Mechanical Fittings
SIZE:
From Ø2” to Ø56”
