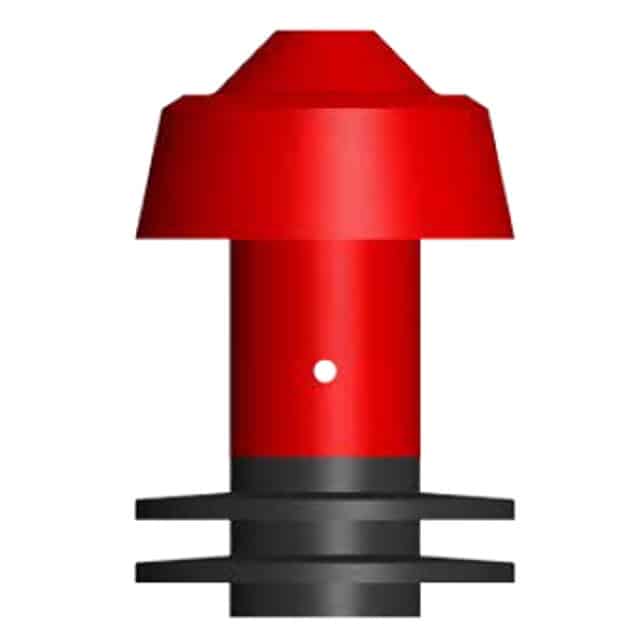

Inline Services now offers the Apache Filming Pig . This pig design can be counted on to perform high standards to optimize the maintenance of your pipeline. The unique design of the new dual durometer Hurricane FP, filming pig, has a front hollow mandrel with two port holes in the middle of the mandrel. This allows the inhibitor to travel to the front of the pig and then through the port holes. The inhibitor is then contained between the 86 durometer leading cup and two 62 durometer rear sealing discs allowing the pig to leave a film of inhibitor on the pipe wall.
- Designed to traverse 1.5D bends
- Lightweight : No metal components
- Flexible design allows easy navigation of bends
- Can be launched in the most common pigging valves
| SIZE | A | B | C | WEIGHT |
|---|---|---|---|---|
| 3" | 2.500 | 4.875 | 3.375 | 1.0 |
| 4" | 3.625 | 6.250 | 4.375 | 2.0 |
| 6" | 5.375 | 8.750 | 6.500 | 4.0 |
| 8" | 7.625 | 11.750 | 8.500 | 10.0 |
| 10" | 9.625 | 14.125 | 10.625 | 20.0 |
| 12" | 10.125 | 15.375 | 12.500 | 32.0 |
